Broken shaft failure analysis

  • 1.  Broken shaft failure analysis

    Posted 01-04-2023 10:39 AM
    Hi All,

    I am looking for someone in the US who can analyze a broken shaft to help us identify the cause of failure. The shaft is off of a roller for an ASRS-style crane system. The vendor/manufacturer is not in the US so we are looking for an outside source for failure analysis.

    Thank you,

    Ryan

    ------------------------------
    Ryan McBride
    Regional Reliability Manager
    Schreiber Foods
    Logan UT
    ------------------------------


  • 2.  RE: Broken shaft failure analysis

    Posted 01-05-2023 06:56 AM
    I have used IMR labs they have done a good job for us with a 10 day turn around.

    IMR Test Labs

    Curtiss-Wright

    4510 Robards Lane, Louisville, KY 40218

    T: 502.810.9007 | F: 502.810.0380

    brian.kelly@imrtest.com | www.imrlouisville.com



    ------------------------------
    David lindow
    Bunge North America East, LLC
    Decatur AL
    ------------------------------



  • 3.  RE: Broken shaft failure analysis

    Posted 01-05-2023 07:15 AM
    Edited by Tamunoteyim Karibo 01-05-2023 07:17 AM
    Hello Ryan.

    Hope this message finds you well.

    Acuren is really good.
    We used them for Crankshaft and main bearing failure analysis and their results were impressive.
    Although these kinds of inspections can be really pricey.
    See their contact details below.
    You can contact an office closest to you

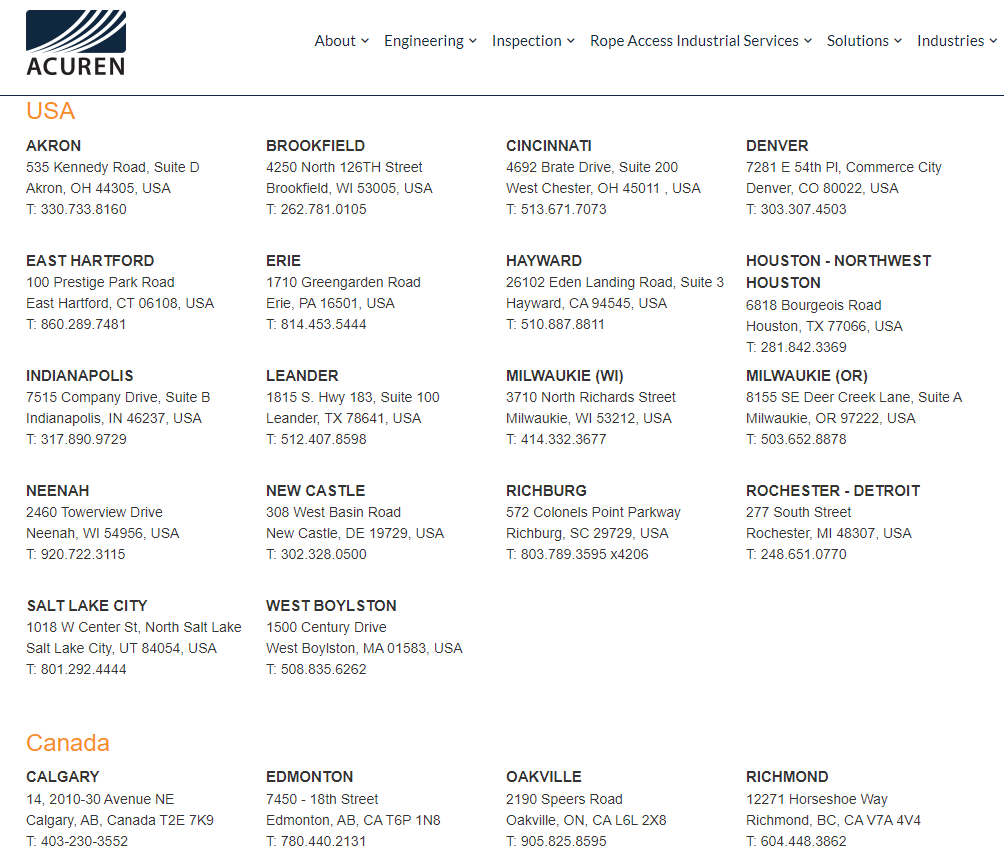

    Their website is Acuren Industrial Services | NDT, Inspection, Engineering & Rope Access



    ------------------------------
    Tammy Karibo
    Reliability Engineer
    Enerflex
    Abu Dhabi
    ------------------------------



  • 4.  RE: Broken shaft failure analysis

    Posted 01-05-2023 07:16 AM
    Edited by Tamunoteyim Karibo 01-05-2023 07:17 AM
    Hi Ryan,

    I forgot to add their link
    See below
    https://www.acuren.com/

    ------------------------------
    Tammy Karibo
    Reliability Engineer
    Enerflex
    Abu Dhabi
    ------------------------------



  • 5.  RE: Broken shaft failure analysis

    Posted 01-05-2023 07:20 AM
    I believe Applied Technical Services (ATS) can do the analysis for you.   They did a great "Practical Plant Failure Analysis" course for us back in 2018.  This course covered shaft failure.

    ------------------------------
    John Yasnowsky CMRP, PE
    Sr. Reliability Engineer
    AdvanSix, Inc
    Hopewell VA
    ------------------------------

    Original Message


  • 6.  RE: Broken shaft failure analysis

    Posted 01-05-2023 07:51 AM
    We have used ESI out of Omaha a few years ago with good results.  https://www.engsys.com/

    ------------------------------
    Doug Asche PE
    Director of Maintenance
    Metropolitan Utilities District of Omaha
    Omaha NE
    ------------------------------



  • 7.  RE: Broken shaft failure analysis

    Posted 01-05-2023 08:27 AM
    Ryan, I have used Applied Technical Services for shaft failures and have been pleased with both the report quality and turnaround time. They have locations throughout the US.

    https://atslab.com/failure-analysis/

    ------------------------------
    Haydn Scott
    Maintenance & Reliability Engineer
    CertainTeed
    Newnan GA
    ------------------------------



  • 8.  RE: Broken shaft failure analysis

    Posted 01-05-2023 09:22 AM
    Ryan,
    Stress Engineering, Inc. is a company that can provide the needed failure analysis.
    See their website at www.stress.com. They have several US offices. Houston TX and Irvine CA may be closest to you. Their test facility is located in Waller TX outside of Houston.
    Excellent reports for both failure analysis and documentation for Continue to Operate evaluations.
    Sincerely,
    Bud Lockwood
    Maintenance Manager, Retired




  • 9.  RE: Broken shaft failure analysis

    Posted 01-05-2023 03:40 PM
    Ryan:

    In my opinion the preeminent expert on this type of failure is Neville W. Sachs, P.E.

    His 2007 text entitled "Practical Plant Failure Analysis: A Guide to Understanding Machinery deterioration and Improving Equipment Reliability" published by CRC Press, Taylor & Francis Group and available on Amazon and more to your problem "Failure Analysis Made Simple: Shafts and Fasteners Paperback" – January 1, 2018 Published by Reliabilityweb .com MROZONE bookstore, also available through Amazon. You can contact Neville via Linkedin.

    Jack Nicholas




    ------------------------------
    Jack Nicholas P.E. CMRP, CRL, IAMC, CAPT USNR (Ret)
    Author , Keynote Speaker and Former CMRP Exam Director
    DBA Jack R Nicholas, Jr.
    Gettysburg PA USA 17325
    jdnicholas@supernet.com
    717-338-9166 (Home/Office/Recorder)
    ------------------------------



  • 10.  RE: Broken shaft failure analysis

    Posted 01-06-2023 11:00 AM
    Ryan,
    I agree with Jack, Neville Sachs.

    ------------------------------
    Mike Barkle, CMRP, CRL
    Sr. Reliability Engineer
    Infralogix
    Williamsburg, VA.
    ------------------------------

    Original Message


  • 11.  RE: Broken shaft failure analysis

    Posted 01-05-2023 04:11 PM
    Ryan,

    I would agree with both Bud Lockwood (on Stress Engineering) and Jack Nicholas (on Neville Sachs). Neville is the "Godfather" in Failure Analysis of equipment within industrial settings. Many of his experiences (i.e. steam turbines) cannot be acquired any long due to evolution.

    If a more practical failure analysis approach is desired, Mike Barkle, one of our Sr. Reliability Engineer (mikebarkle@infralogix.com), is highly qualified to perform this type of work. He has helped many clients with a more practical initial evaluation to determine any obvious actionable conclusions before seeking formal FA evaluations. He also has experienced with ASRS-style cranes since several of our clients have such systems. Feel free to email him directly to inquire about suitability.

    ------------------------------
    W. Wayne Vick, Jr. EE, CMRP, CRL, ARP-IIIX
    President/CEO
    Infralogix
    Williamsburg VA
    ------------------------------



  • 12.  RE: Broken shaft failure analysis

    Posted 01-09-2023 08:46 AM
    I would also recommend Neville Sachs.  He has been instrumental in providing training and failure analysis services for the ski lift maintenance industry.

    ------------------------------
    Joe Klosterman
    Sr. Manager - Lift Maintenance
    Gypsum, Colorado
    ------------------------------

    Original Message


  • 13.  RE: Broken shaft failure analysis

    Posted 01-09-2023 09:05 AM
    Hi Ryan,
    Maybe late, but you can contact Jim Dettore (https://www.linkedin.com/in/jim-dettore-2589031b/)
    He owns Failure Analysis Services and is a RCFA technical training and failure analysis service provider to Heavy Equipment and Engine Manufacturers, Oil & Gas, Mining, Component Reman, Construction Equipment Manufacturers and Dealers, Marine, trucking, and more in Colorado, Utah, Nevada and California.



    ------------------------------
    Julio Castillo
    Newmont Gold
    Miami FL
    ------------------------------
